BOB / RONNIE / DAN... Need a brief but powerful introduction for this section. Maybe mention that it's not necessarily a complete definitive breakdown of house types, but more of an overall generalised guide for th more common house types? Maybe good to mention that many homes of a certain age will have ALREADY been renovated
SOME KEY HISTORICAL DEVELOPMENTS | NEW ZEALAND BUILD
BOB, these are great, but not sure if these are finalised? I think they may need a brief sentence further to explain significance???? or maybe just a better explanation, ie 2023 ENERGY EFFICIENT doesn't mean a lot to me...
Re Building Code, this page isn't the platform to explain it's pitfalls, I can have a button link to take us to that particular page... (That page will also be in the main menu).
1952 Treated Timber was introduced
1978 Insulation introduced
1991 Building Act passed
1992 Building Code introduced
2004 Building Code ???? (Bob not sure if what you sent is what you intended here????)
2007 Double Glazing introduced
2020 Building for Climate Change
2023 Energy-efficient

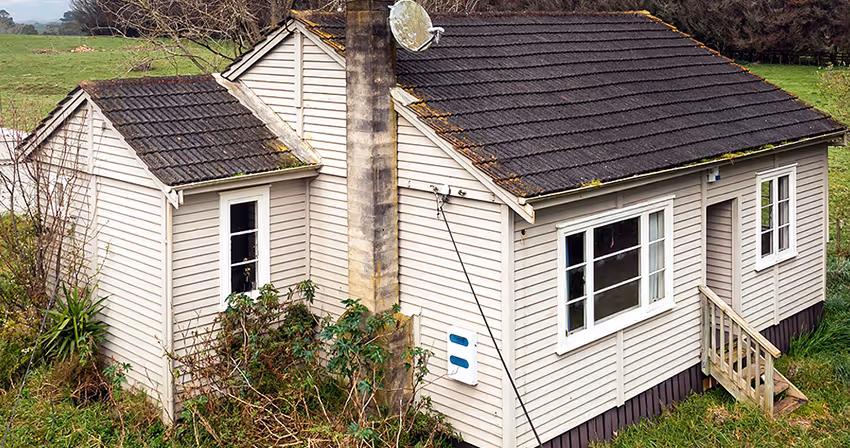

POST-WAR PRACTICAL

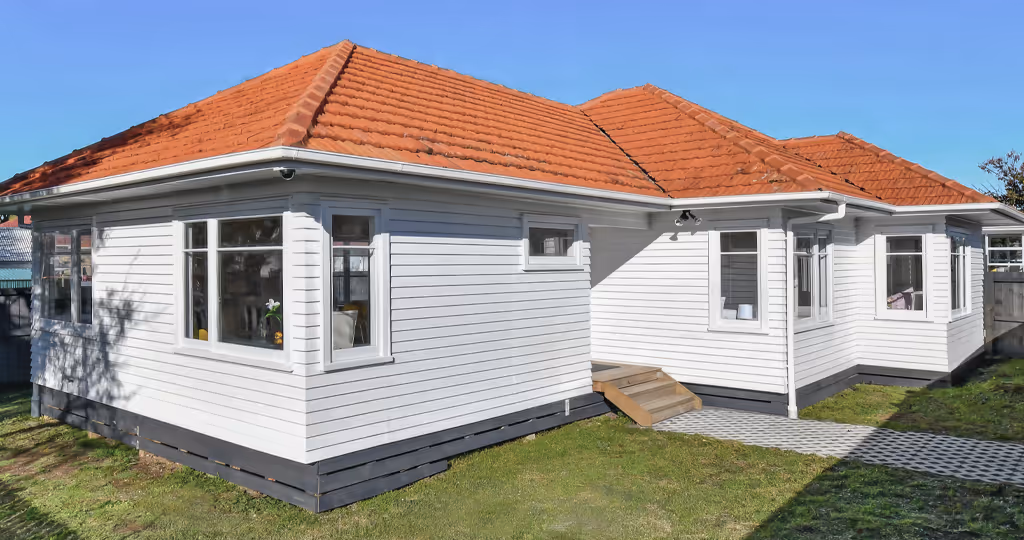

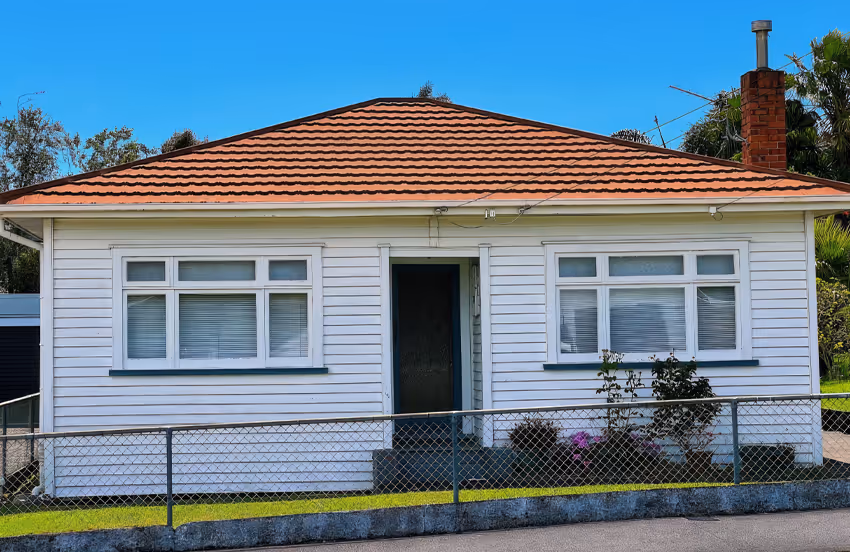

Through the later 1930s Depression years and after the Second World War, NZ Government programmes to fix a widespread housing shortage resulted in the construction of thousands of State Houses – still common and very popular today. Designs and external features were varied to avoid uniformity, although internal structures and materials were standardised for economy of scale. Originally there was minimal decoration to these sturdy little homes, although many have since been creatively transformed.
1940s homes were commonly rectangular, or T or L shaped in plan, with three bedrooms and separate living and dining rooms and kitchens. Ceilings were lower and rooms smaller than the generous spaces of earlier villas. State Houses usually had higher-pitched roof structures, either a central hip or gable ends, narrow eaves, and relatively small banks of narrow timber-framed multi-paned windows. A range of claddings were used including timber weatherboards, asbestos-cement sheets or shingles, brick veneer or stucco. Foundations were usually concrete piles, with continuous concrete foundation walls supporting brick veneer. Flooring and framing were timber, and internal linings were plasterboard and hardboard, with softboard ceilings.Roofing was tile, corrugated iron or asbestos-cement. Heating was an open fireplace in the living room with a chimney of concrete or brick.

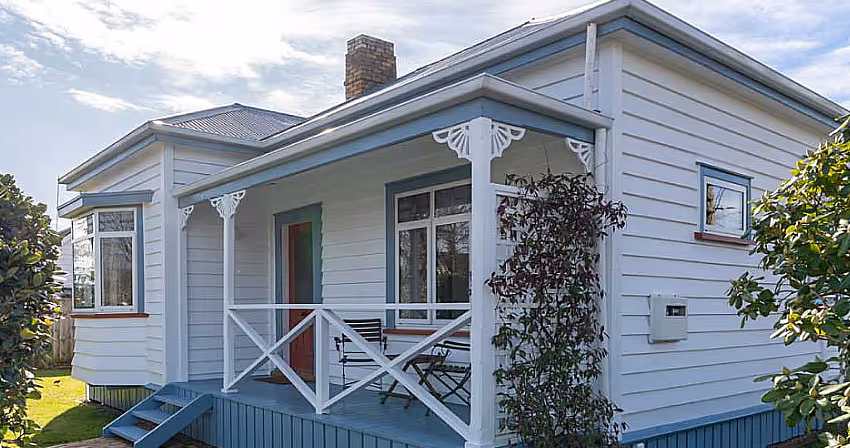

In the late 1940s a change of Government led to an increase in private construction, although the designs and methods remained very similar to the State House model for a basic family home through into the 1950s..
DEALING WITH PREVIOUS RENOVATIONS & CHANGES
Very few 1940s and 50s houses still remain in their original state today, and most renovation projects will have to deal with modifications that have already been made over the years. In many cases these changes – reflecting the techniques, materials and fashions of the 1960s, 70s or 80s – will not be adding value to the performance, the charm or the liveability of the home. Some may be the result of dodgy if well-intentioned DIY projects and not up to basic standards.
Today’s methods and technologies can solve such messy problems – but the renovation process will need a careful review of any earlier changes and conversion work:
Extensions to provide additional living spaces or bedrooms
Removal of internal walls to create open-plan living / dining / kitchen areas
Replacement or repair of original roofing or external cladding
Insulation in the roof space or under the floor
Replacement of original windows with aluminium frames – may be single glazed
Replacement of original kitchen and bathroom fittings
WHAT YOU MIGHT FIND IN YOUR 1940s / 50s HOME – & RECOMMENDATIONS...
FOUNDATIONS & FLOORS
Missing or inadequate piles and joists
FIX – ????????
Sagging joists or bouncy floors
FIX – ????????????????
Uneven floors
FIX – ????????????????
Rising damp
FIX – ????????????????
Cracking or deterioration of concrete foundation walls
FIX – ????????????????
Blocked or damaged ventilation grilles in foundation walls
FIX – ????????????????
Lack of ground clearance and poor subfloor ventilation
FIX – ????????????????
Lack of underfloor insulation
FIX – ????????????????
Retrofitted insulation that is inadequate or deteriorated
FIX – ????????????????
FIX – ????????????????
FRAMING, INTERNAL WALLS & CEILINGS
Untreated native timber framing and boards
FIX – Retain if sound; treat for borer if needed
Plasterboard or hardboard – may have deteriorated
FIX – ????????
No insulation in walls
FIX – ????????
Retrofitted insulation may include urea-formaldehyde foam
FIX – ????????
Walls no longer square or out of plumb
FIX – ????????
Draughts and gaps – no airtightness
FIX – ????????
Dampness – mould on walls and ceilings in rooms with inadequate ventilation, rot, mustiness and smells
FIX – ????????
Asbestos
FIX – ????????
Borer
FIX – ????????
Rodent nests
FIX – ????????
CLADDING
Timber weatherboards with lead-based paint or creosote weatherproofing
FIX – ????????
Rot in external timber cladding
FIX – ????????
Asbestos-cement sheets or shingles – likely to be cracked or water damaged due to poor drainage or ventilation
FIX – ????????

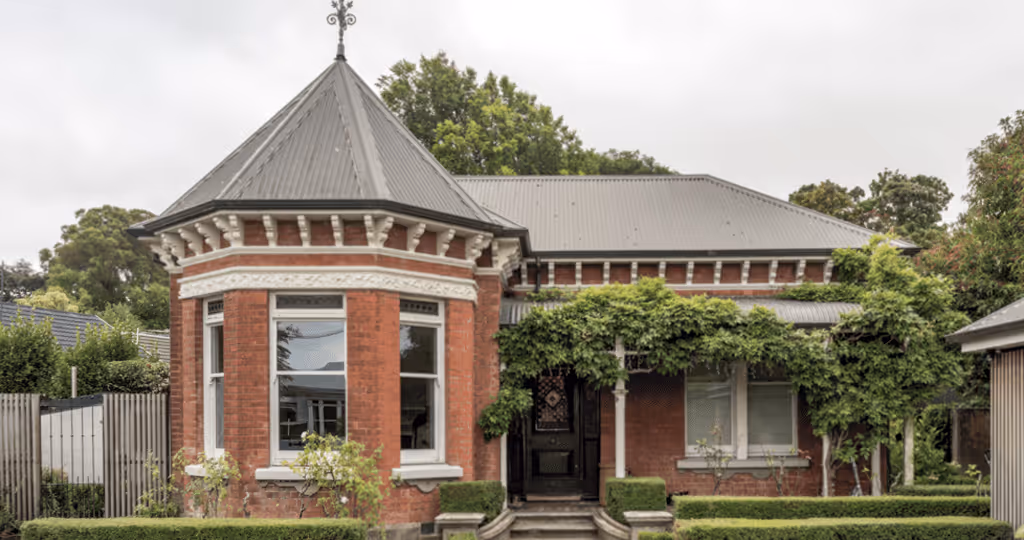

Brick veneer – likely to be cracked or water damaged due to poor drainage or ventilation
FIX – ????????

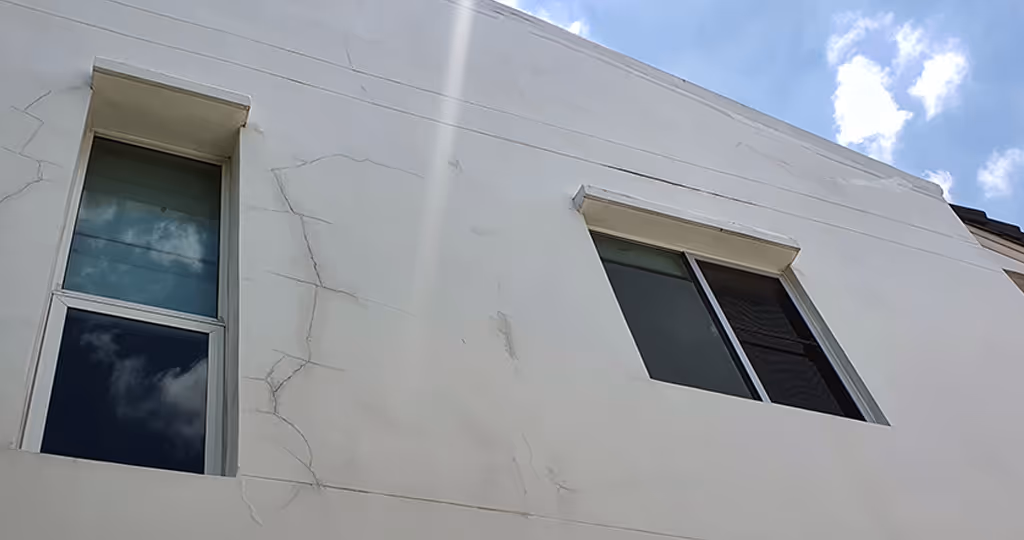

Stucco – likely to be cracked or water damaged due to poor drainage or ventilation
FIX – ????????
No waterproofing layers or building membrane
FIX – ????????
No insulation in walls
FIX – ????????
Retrofitted insulation may include urea-formaldehyde foam
FIX – ????????
Lead paint
FIX – ????????
Borer
FIX – ????????
WINDOWS
Original timber framed windows – single glazed
FIX – ????????
Lead paint on sashes and frames
FIX – ????????
Inadequate sealing and flashings
FIX – ????????
Windows warping and sticking
FIX – ????????
Rot in sashes and frames
FIX – ????????
Corrosion of metal flashings and hinges
FIX – ????????
ROOFS
Corrugated iron with lead nails / coatings
FIX – ????????
Asbestos cement sheeting or shingles – may be cracked or corroded, or have moss or lichen spreading across
FIX – ????????
Tiles – may be cracked or corroded
FIX – ????????
Inadequate insulation or retrofitted insulation that has deteriorated
FIX – ????????
Leaks and historical roofing repairs
FIX – ????????
Moisture damage or cracking to cladding under eaves
FIX – ????????
Lead paint and lead flashings
FIX – ????????
VENTILATION
No ventilation system except draughts and opening windows
FIX – Add balanced MVHR system with low-VOC ducting
Stuffy interiors – smells and mould
FIX – ????????
INTRO NEEDED FOR STATE HOUSES...
ISSUES / RECOMMENDATIONS:
FOUNDATIONS
Asbestos DPCs (Damp Proof Courses) occasionally used; concrete with poor drainage
SUPERHOME FIX / UPGRADE – Replace with PE (Polyethylene) vapour barriers
FRAMING
Untreated timber; often still solid
SUPERHOME FIX / UPGRADE – Seal gaps; install membranes internally
BUILDING MEMBRANES
None or black bituminous paper (off-gasses)
SUPERHOME FIX / UPGRADE – Remove and replace with modern WRB (Weather-Resistive Barrier)
INSULATION
Often loose-fill mineral wool or glass fibre
SUPERHOME FIX / UPGRADE – Remove & replace with safe batts or blown-in cellulose
CLADDING
Asbestos cement sheets (e.g. SuperSix)
SUPERHOME FIX / UPGRADE – Licensed removal; reclad with breathable timber or fibre-cement systems
WINDOWS
Aluminium + bituminous sealants
SUPERHOME FIX / UPGRADE – Replace with low-VOC joinery systems
ROOF
Iron or asbestos-containing concrete tiles
SUPERHOME FIX / UPGRADE – Replace with modern roofing. Use breathable underlay.
VENTILATION
Passive vents only
SUPERHOME FIX / UPGRADE – MVHR upgrade with air quality monitoring
MOULD
Hidden in ceiling cavities
SUPERHOME FIX / UPGRADE – Fix thermal envelope; use mould-resistant linings
Need an introductory paragraph for this section... Also please check that the below pix are appropriate???????
ISSUES / RECOMMENDATIONS:
FOUNDATIONS
Bitumen DPMs (Damp-Proof Membranes); potential off-gassing
SUPERHOME FIX / UPGRADE – Retrofit with new poly barriers and insulation
FRAMING
Untreated framing timber
SUPERHOME FIX / UPGRADE – Add service cavity, membrane, and insulation
BUILDING MEMBRANES
Early building wraps degraded or tar-based
SUPERHOME FIX / UPGRADE – Replace with airtight but vapour-open membranes
INSULATION
Glass wool and foil insulation (now banned)
SUPERHOME FIX / UPGRADE – Remove foil; replace with safe, fire-retardant insulation
CLADDING
Hardboard, asbestos cement, or early fibre cement
SUPERHOME FIX / UPGRADE – Test and remove; reclad with safe cavity systems
WINDOWS
Aluminium single-glazed; rubber seals may degrade into VOCs
SUPERHOME FIX / UPGRADE – Replace with non-toxic thermally broken units
ROOF
Decramastic tiles (lead bitumen); asbestos flashings
SUPERHOME FIX / UPGRADE – Replace with modern steel or tile roof; ventilate roof space
VENTILATION
Internal moisture issues
SUPERHOME FIX / UPGRADE – MVHR system with washable filters
MOULD
Grows behind foil insulation and in ceiling corners
SUPERHOME FIX / UPGRADE – Upgrade thermal envelope and ventilation
Need an introductory paragraph for this section...
ISSUES / RECOMMENDATIONS:
FOUNDATIONS
Slab-on-grade with no insulation; some chemical damp-proofing
SUPERHOME FIX / UPGRADE – Add external insulation and control layers
FRAMING
Untreated pine – often decayed, not toxic but dangerous
SUPERHOME FIX / UPGRADE – Remove and replace with H1.2+ treated or engineered wood
BUILDING MEMBRANES
Monolithic EIFS (Exterior Insulation and Finish Systems) with polystyrene; non-breathable
SUPERHOME FIX / UPGRADE – Remove and reclad with breathable, drained WRB (Weather-Resistive Barrier) system
INSULATION
Polystyrene or glass wool; often poorly installed
SUPERHOME FIX / UPGRADE – Remove EPS (expanded polystyrene); upgrade with non-toxic batts + rigid board externally
CLADDING
Polystyrene systems (toxic in fire); fibre cement may contain silica
SUPERHOME FIX / UPGRADE – Replace with low-toxicity ventilated cladding (timber, metal, etc)
WINDOWS
Sealants off-gassing; poor flashings
SUPERHOME FIX / UPGRADE – Replace with uPVC or thermally broken aluminium; safe low-VOC sealants
ROOF
Membrane roofs may use PVC or VOC-heavy glues
SUPERHOME FIX / UPGRADE – Re-roof using TPO* membranes or steel with natural underlays.
*(TPO (thermoplastic polyolefin) waterproofing membrane).
VENTILATION
Poor air quality
SUPERHOME FIX / UPGRADE – Full MVHR with VOC & CO₂ sensors
MOULD
Hidden in cavities; triggered by trapped moisture
SUPERHOME FIX / UPGRADE – Strip walls, re-insulate, and rebuild envelope to breathe
Need an introductory paragraph for this section...
ISSUES / RECOMMENDATIONS:
FOUNDATIONS
Slab insulation often missing; minor emissions from treated timber or adhesives
SUPERHOME FIX / UPGRADE – Design warm slab or retrofit slab edge insulation
FRAMING
H1.2 treated pine (boron – safe); some LVL glues contain formaldehyde
SUPERHOME FIX / UPGRADE – Specify FSC-certified, low-emission engineered wood
BUILDING MEMBRANES
Modern wraps sometimes non-breathable
SUPERHOME FIX / UPGRADE – Choose vapour-open, airtight WRBs (Weather-Resistive Barriers) with ecolabels
INSULATION
Glass wool; some foams still high in embodied carbon/toxicity
SUPERHOME FIX / UPGRADE – Upgrade to wool, recycled PET, or hemp; avoid PIR/PUR
CLADDING
Composites or fibre cement with crystalline silica
SUPERHOME FIX / UPGRADE – Prefer timber or low-tox fibre cement with safety cutting tools
WINDOWS
Aluminium; off-gassing in some composite seal
SUPERHOME FIX / UPGRADE – Use low-tox, thermally broken frames and non-toxic sealants
ROOF
Generally sound; some asphalt-based products still used
SUPERHOME FIX / UPGRADE – Warm roof design with low-tox insulation and breathable membranes
VENTILATION
HRV = air recycling; still VOC build-up
SUPERHOME FIX / UPGRADE – Specify MVHR with HEPA and carbon filters; ensure full duct cleaning
MOULD
Appears from thermal bridging
SUPERHOME FIX / UPGRADE – Use thermal breaks, warm junction detailing, and airtight layers
